Commercial and Industrial ESS
Lorem ipsum dolor sit amet, inciderint referrentur te vim.
The liquid-cooled energy storage system has IP67 protection level, and is suitable for a variety of application scenarios such as peak-to-valley tariff arbitrage,
AC power grid expansion, C&I power preservation & backup, and off-grid emergency power supply.
Home >
Product Advantage
Improve Power Quality
Reactive power compensation, optimize power supply quality
Emergency Power Backup
Automatic parallel and off grid switching, continuous power supply for external loads
Fast Construction
Flexible deployment, shortened construction period
Cost Reduction
Peak shaving and valley filling, arbitrage from peak and valley
High Security
Liquid cooling system, perfluorohexanone electric box fire protection
Flexible Capacity Expansion
Support rapid capacity expansion, support 380V and 10kV power grid access
Clean Energy Consumption
Reducing light energy waste, improving the utilization rate of clean energy
Expandability
Can be connected to external devices, extended DC charging and DC PV
Application Scenario
View All

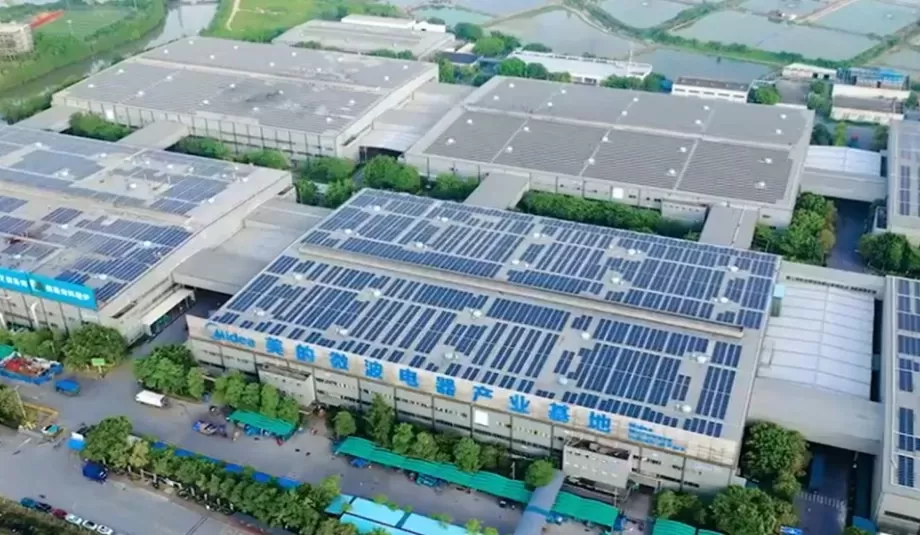

Factory
City
Auto Shop
Shopping Arcade
Supporting Products
Commercial and Industrial ESS Container
EMS/Monitoring Centre
-
Commercial and Industrial (0.2~2MWh)
-
Commercial and Industrial (Below 1MWh)
-
Commercial and Industrial (Above 1MWh)
| Max. Number of Racks in Parallel | 12 |
| PCS Specifications | 500kW |
| Rated AC Power | 500kVA / kW |
| Rated Grid Voltage | 400Vac |
| Total Harmonic Distortion | <3% |
| Rated Grid Frequency (Range) | 50 Hz / 60 Hz |
| Peak Efficiency | 98% |
| Power Factory | -1 to 1, continuously adjustable |
| ENERGY STORAGE | |
| Rated Energy DC | 206.9kWh*N |
| Voltage Range (Nominal Voltage) | 646.8Vdc ~ 831.6Vdc (739.3Vdc) |
| Chemistry | LFP |
| DIMENSIONS & WEIGHTS | |
| System Dimensions (mm, W x D x H) | 1500×1150×2450 for PCS, 1295×1500×2280 for each Battery Rack |
| Weight of Key Components (kg) | 600 kg for PCS, 2500 kg per 206.9 kWh Battery Rack |
| ENVIRONMENTAL | |
| Operating Temperature Range / Humidity Range | -20~50 °C (PCS derating at 45 to 55 °C) / 0 to 95% RH non-condensing |
| Altitudes | <4000m (derating >2000m) |
| IP Ratings | Battery System IP54, PCS IP54, Control Cabinet IP54, DC Combiner IP54 |
| FEATURES | |
| Battery Monitoring System | YES ‒ Capable through CNTE monitoring system |
| Fire Suppression System | Pre-integrated Fire Suppression System with smoke and heat detectors plus aerosols or NVAC1230 |
| COMPLIANCE | |
| PCS Related Standards | IEC 62477, IEC 61000-6-2, IEC 61000-6-4, EN 50549, G99, AS/NZS 4777.2:2020, NRS 097-2-1:2017 |
| Battery Related Standards | UN 38.3, UN 3481, IEC 62619, IEC 61000-6-2/-4, IEC 62477-1 |
| Max. Number of Systems in Parallel | 8 |
| PCS Specifications | 100kW |
| Rated AC Power | 100kVA / kW |
| Rated Grid Voltage | 400Vac |
| Max. Discharge / Charge Current | 157A / 151A |
| Total Harmonic Distortion | <3% |
| Rated Grid Frequency (Range) | 50 Hz |
| Peak Efficiency | 98% |
| Power Factory | -1 to 1, continuously adjustable |
| ENERGY STORAGE | |
| Rated Energy DC | 232.96kWh*N |
| Voltage Range (Nominal Voltage) | 728Vdc ~ 936Vdc( 832Vdc ) |
| Chemistry | LFP |
| DIMENSIONS & WEIGHTS | |
| System Dimensions (mm, W x D x H) | 600×500×2000 for PCS 1300 x 1300 x 2280 for each Battery Rack |
| Weight of Key Components (kg) | 230 kg for PCS, 3500 kg per 232.96 kWh Battery Rack |
| ENVIRONMENTAL | |
| Operating Temperature Range / Humidity Range | -20~50 °C (PCS derating at 45 to 55 °C) / 0 to 95% RH non-condensing |
| Altitudes | <4000m (derating >2000m) |
| IP Ratings | Battery System IP66, PCS IP54, Control Cabinet IP54, DC Combiner IP54 |
| FEATURES | |
| Battery Monitoring System | YES ‒ Capable through CNTE monitoring system |
| Fire Suppression System | Pre-integrated Fire Suppression system with smoke and heat detectors plus aerosols |
| COMPLIANCE | |
| PCS Related Standards | IEC 62477-1, EN62477-1, IEC/EN61000-6-2, IEC/EN 61000-6-4 IEC 60068-2-6:2007, AS/NZS 4777.2:2020 |
| Battery Related Standards | UN 38.3, UN3481, IEC 62619, IEC 61000-6-2/-4, IEC 62477-1, UL 1973, UL9540A |
| Max. Number of Systems in Parallel | 2 | |||
| PCS Specifications | 1000kW | 1200kW | 1500kW | 1725kW |
| Rated AC Power | 1000 kVA / kW | 1200 kVA / kW | 1500 kVA / kW | 1725 kVA / kW |
| Rated Grid Voltage | 400 Vac | 480 Vac | 600 Vac | 690 Vac |
| Max. AC Current | 1672A | 1448A | ||
| Total Harmonic Distortion | <3% | |||
| Rated Grid Frequency (Range) | 50 Hz / 60 Hz | |||
| Peak Efficiency | 98% | |||
| Power Factory | -1 to 1, continuously adjustable | |||
| ENERGY STORAGE | ||||
| Rated Energy DC | 372.736kWh*N | |||
| Voltage Range (Nominal Voltage) | 1164.8 ~ 1497.6Vdc ( 1331.2Vdc ) | |||
| Chemistry | LFP | |||
| DIMENSIONS & WEIGHTS | ||||
| System Dimensions (mm, W x D x H) | 2200 x 1100 x 2280 for PCS, 1300 x 1300 x 2280 for each Battery Rack |
|||
| Weight of Key Components (kg) | 2600 kg for PCS, 3500 kg per 372.736 kWh Battery Rack | |||
| ENVIRONMENTAL | |
| Operating Temperature Range / Humidity Range | -20~50 °C (PCS derating at 45 to 55 °C) / 0 to 95% RH non-condensing |
| Altitudes | <4000m (derating >2000m) |
| IP Ratings | Battery System IP66, PCS IP54, Control cabinet IP54, DC Combiner IP54 |
| FEATURES | |
| Battery Monitoring System | YES ‒ Capable through CNTE monitoring system |
| Fire Suppression System | Pre-integrated Fire Suppression system with smoke and heat detectors plus aerosols |
| COMPLIANCE | |
| PCS Related Standards | VDE AR-N 4110, G99, IEC 62477, IEC 61000-6-2, IEC 61000-6-4 IEEE1547:2018, UL 1741, UL1741 SB |
| Battery Related Standards | UN 38.3, UN3481, IEC 62619, IEC 61000-6-2/-4, IEC 62477-1, UL 1973, UL9540A |
-
Commercial and Industrial (0.2~2MWh)
-
Commercial and Industrial (Below 1MWh)
-
Commercial and Industrial (Above 1MWh)
| Max. Number of Racks in Parallel | 12 |
| PCS Specifications | 500kW |
| Rated AC Power | 500kVA / kW |
| Rated Grid Voltage | 400Vac |
| Total Harmonic Distortion | <3% |
| Rated Grid Frequency (Range) | 50 Hz / 60 Hz |
| Peak Efficiency | 98% |
| Power Factory | -1 to 1, continuously adjustable |
| ENERGY STORAGE | |
| Rated Energy DC | 206.9kWh*N |
| Voltage Range (Nominal Voltage) | 646.8Vdc ~ 831.6Vdc (739.3Vdc) |
| Chemistry | LFP |
| DIMENSIONS & WEIGHTS | |
| System Dimensions (mm, W x D x H) | 1500×1150×2450 for PCS, 1295×1500×2280 for each Battery Rack |
| Weight of Key Components (kg) | 600 kg for PCS, 2500 kg per 206.9 kWh Battery Rack |
| ENVIRONMENTAL | |
| Operating Temperature Range / Humidity Range | -20~50 °C (PCS derating at 45 to 55 °C) / 0 to 95% RH non-condensing |
| Altitudes | <4000m (derating >2000m) |
| IP Ratings | Battery System IP54, PCS IP54, Control Cabinet IP54, DC Combiner IP54 |
| FEATURES | |
| Battery Monitoring System | YES ‒ Capable through CNTE monitoring system |
| Fire Suppression System | Pre-integrated Fire Suppression System with smoke and heat detectors plus aerosols or NVAC1230 |
| COMPLIANCE | |
| PCS Related Standards | IEC 62477, IEC 61000-6-2, IEC 61000-6-4, EN 50549, G99, AS/NZS 4777.2:2020, NRS 097-2-1:2017 |
| Battery Related Standards | UN 38.3, UN 3481, IEC 62619, IEC 61000-6-2/-4, IEC 62477-1 |
| Max. Number of Systems in Parallel | 8 |
| PCS Specifications | 100kW |
| Rated AC Power | 100kVA / kW |
| Rated Grid Voltage | 400Vac |
| Max. Discharge / Charge Current | 157A / 151A |
| Total Harmonic Distortion | <3% |
| Rated Grid Frequency (Range) | 50 Hz |
| Peak Efficiency | 98% |
| Power Factory | -1 to 1, continuously adjustable |
| ENERGY STORAGE | |
| Rated Energy DC | 232.96kWh*N |
| Voltage Range (Nominal Voltage) | 728Vdc ~ 936Vdc( 832Vdc ) |
| Chemistry | LFP |
| DIMENSIONS & WEIGHTS | |
| System Dimensions (mm, W x D x H) | 600×500×2000 for PCS 1300 x 1300 x 2280 for each Battery Rack |
| Weight of Key Components (kg) | 230 kg for PCS, 3500 kg per 232.96 kWh Battery Rack |
| ENVIRONMENTAL | |
| Operating Temperature Range / Humidity Range | -20~50 °C (PCS derating at 45 to 55 °C) / 0 to 95% RH non-condensing |
| Altitudes | <4000m (derating >2000m) |
| IP Ratings | Battery System IP66, PCS IP54, Control Cabinet IP54, DC Combiner IP54 |
| FEATURES | |
| Battery Monitoring System | YES ‒ Capable through CNTE monitoring system |
| Fire Suppression System | Pre-integrated Fire Suppression system with smoke and heat detectors plus aerosols |
| COMPLIANCE | |
| PCS Related Standards | IEC 62477-1, EN62477-1, IEC/EN61000-6-2, IEC/EN 61000-6-4 IEC 60068-2-6:2007, AS/NZS 4777.2:2020 |
| Battery Related Standards | UN 38.3, UN3481, IEC 62619, IEC 61000-6-2/-4, IEC 62477-1, UL 1973, UL9540A |
| Max. Number of Systems in Parallel | 2 | |||
| PCS Specifications | 1000kW | 1200kW | 1500kW | 1725kW |
| Rated AC Power | 1000 kVA / kW | 1200 kVA / kW | 1500 kVA / kW | 1725 kVA / kW |
| Rated Grid Voltage | 400 Vac | 480 Vac | 600 Vac | 690 Vac |
| Max. AC Current | 1672A | 1448A | ||
| Total Harmonic Distortion | <3% | |||
| Rated Grid Frequency (Range) | 50 Hz / 60 Hz | |||
| Peak Efficiency | 98% | |||
| Power Factory | -1 to 1, continuously adjustable | |||
| ENERGY STORAGE | ||||
| Rated Energy DC | 372.736kWh*N | |||
| Voltage Range (Nominal Voltage) | 1164.8 ~ 1497.6Vdc ( 1331.2Vdc ) | |||
| Chemistry | LFP | |||
| DIMENSIONS & WEIGHTS | ||||
| System Dimensions (mm, W x D x H) | 2200 x 1100 x 2280 for PCS, 1300 x 1300 x 2280 for each Battery Rack |
|||
| Weight of Key Components (kg) | 2600 kg for PCS, 3500 kg per 372.736 kWh Battery Rack | |||
| ENVIRONMENTAL | |
| Operating Temperature Range / Humidity Range | -20~50 °C (PCS derating at 45 to 55 °C) / 0 to 95% RH non-condensing |
| Altitudes | <4000m (derating >2000m) |
| IP Ratings | Battery System IP66, PCS IP54, Control cabinet IP54, DC Combiner IP54 |
| FEATURES | |
| Battery Monitoring System | YES ‒ Capable through CNTE monitoring system |
| Fire Suppression System | Pre-integrated Fire Suppression system with smoke and heat detectors plus aerosols |
| COMPLIANCE | |
| PCS Related Standards | VDE AR-N 4110, G99, IEC 62477, IEC 61000-6-2, IEC 61000-6-4 IEEE1547:2018, UL 1741, UL1741 SB |
| Battery Related Standards | UN 38.3, UN3481, IEC 62619, IEC 61000-6-2/-4, IEC 62477-1, UL 1973, UL9540A |
-
Commercial and Industrial (0.2~2MWh)
-
Commercial and Industrial (Below 1MWh)
-
Commercial and Industrial (Above 1MWh)
| Max. Number of Racks in Parallel | 12 |
| PCS Specifications | 500kW |
| Rated AC Power | 500kVA / kW |
| Rated Grid Voltage | 400Vac |
| Total Harmonic Distortion | <3% |
| Rated Grid Frequency (Range) | 50 Hz / 60 Hz |
| Peak Efficiency | 98% |
| ENERGY STORAGE | |
| Rated Energy DC | 206.9kWh*N |
| Voltage Range (Nominal Voltage) | 646.8Vdc ~ 831.6Vdc (739.2Vdc) |
| Chemistry | LFP |
| DIMENSIONS & WEIGHTS | |
| System Dimensions (mm, W x D x H) | 1500×1150×2450 for PCS, 1295×1500×2280 for each Battery Rack |
| Weight of Key Components (kg) | 600 kg for PCS, 2500 kg per 206.9 kWh Battery Rack |
| ENVIRONMENTAL | |
| Operating Temperature Range / Humidity Range | -20~50 °C (PCS derating at 45 to 55 °C) / 0 to 95% RH non-condensing |
| Altitudes | <3000m (derating >3000m) |
| IP Ratings | Battery System IP54, PCS IP54, Control and DC Combiner Cabinet IP54 |
| FEATURES | |
| Battery Monitoring System | YES ‒ Capable through CNTE monitoring system |
| Fire Suppression System | Pre-integrated Fire Suppression System with smoke and heat detectors plus aerosols or NVAC1230 |
| COMPLIANCE | |
| PCS Related Standards | UL 1741, UL 1741SB, IEEE 1547:2018 |
| Battery Related Standards | UN 38.3, UN 3481, UL 1973, UL 9540A |
| Max. Number of Systems in Parallel | 8 |
| PCS Specifications | 125kW |
| Rated AC Power | 125kVA / kW |
| Rated Grid Voltage | 480Vac |
| Max. Discharge / Charge Current | 157A / 151A |
| Total Harmonic Distortion | <3% |
| Rated Grid Frequency (Range) | 50 Hz |
| Peak Efficiency | 98% |
| Power Factory | -1 to 1, continuously adjustable |
| ENVIRONMENTAL | |
| Operating Temperature Range / Humidity Range | -20~50 °C (PCS derating at 45 to 55 °C) / 0 to 95% RH non-condensing |
| Altitudes | <4000m (derating >2000m) |
| IP Ratings | Battery System IP54, PCS IP54, Control and DC Combiner Cabinet IP54 |
| ENERGY STORAGE | |
| Rated Energy DC | 279.55kWh*N |
| Voltage Range (Nominal Voltage) | 873.6Vdc ~ 1123.2Vdc ( 998.4Vdc ) |
| Chemistry | LFP |
| FEATURES | |
| Battery Monitoring System | YES ‒ Capable through CNTE monitoring system |
| Fire Suppression System | Pre-integrated Fire Suppression system with smoke and heat detectors plus aerosols |
| COMPLIANCE | |
| PCS Related Standards | UL 1741, UL 1741 SB, IEEE 1547:2018 |
| Battery Related Standards | UN 38.3, UN 3481, UL 1973, UL 9540A |
| DIMENSIONS & WEIGHTS | |
| System Dimensions (mm, W x D x H) | 600×500×2000 for PCS 1300 x 1300 x 2280 for each Battery Rack |
| Weight of Key Components (kg) | 230 kg for PCS, 3100 kg per 279.55kWh Battery Rack |
| Max. Number of Systems in Parallel | 2 | ||
| PCS Specifications | 1200kW | 1500kW | 1725kW |
| Rated AC Power | 1200 kVA / kW | 1500 kVA / kW | 1725 kVA / kW |
| Rated Grid Voltage | 480 Vac | 600 Vac | 690 Vac |
| Max. AC Current | 1604A | ||
| Total Harmonic Distortion | <3% | ||
| Rated Grid Frequency (Range) | 50 Hz / 60 Hz | ||
| Peak Efficiency | 98% | ||
| Power Factory | Four quadrants | ||
| ENERGY STORAGE | |||
| Rated Energy DC | 372.736kWh*N | ||
| Voltage Range (Nominal Voltage) | 1164.8 ~ 1497.6Vdc ( 1331.2Vdc ) | ||
| Chemistry | LFP | ||
| DIMENSIONS & WEIGHTS | |||
| System Dimensions (mm, W x D x H) | 2200 x 1100 x 2260 for PCS, 1300 x 1300 x 2280 for each Battery Rack |
||
| Weight of Key Components (kg) | 2600 kg for PCS, 3700 kg per 372.736 kWh Battery Rack | ||
| ENVIRONMENTAL | |
| Operating Temperature Range / Humidity Range | -20~50 °C (PCS derating at 45 to 55 °C) / 0 to 95% RH non-condensing |
| Altitudes | <4000m (derating >2000m) |
| IP Ratings | Battery System IP54, PCS IP54, Control and DC Combiner Cabinet IP54 |
| FEATURES | |
| Battery Monitoring System | YES ‒ Capable through CNTE monitoring system |
| Fire Suppression System | Pre-integrated Fire Suppression system with smoke and heat detectors plus aerosols |
| COMPLIANCE | |
| PCS Related Standards | IEEE 1547:2018, UL 1741, UL 1741 SB |
| Battery Related Standards | UN 38.3, UN 3481, UL 1973, UL 9540A |
