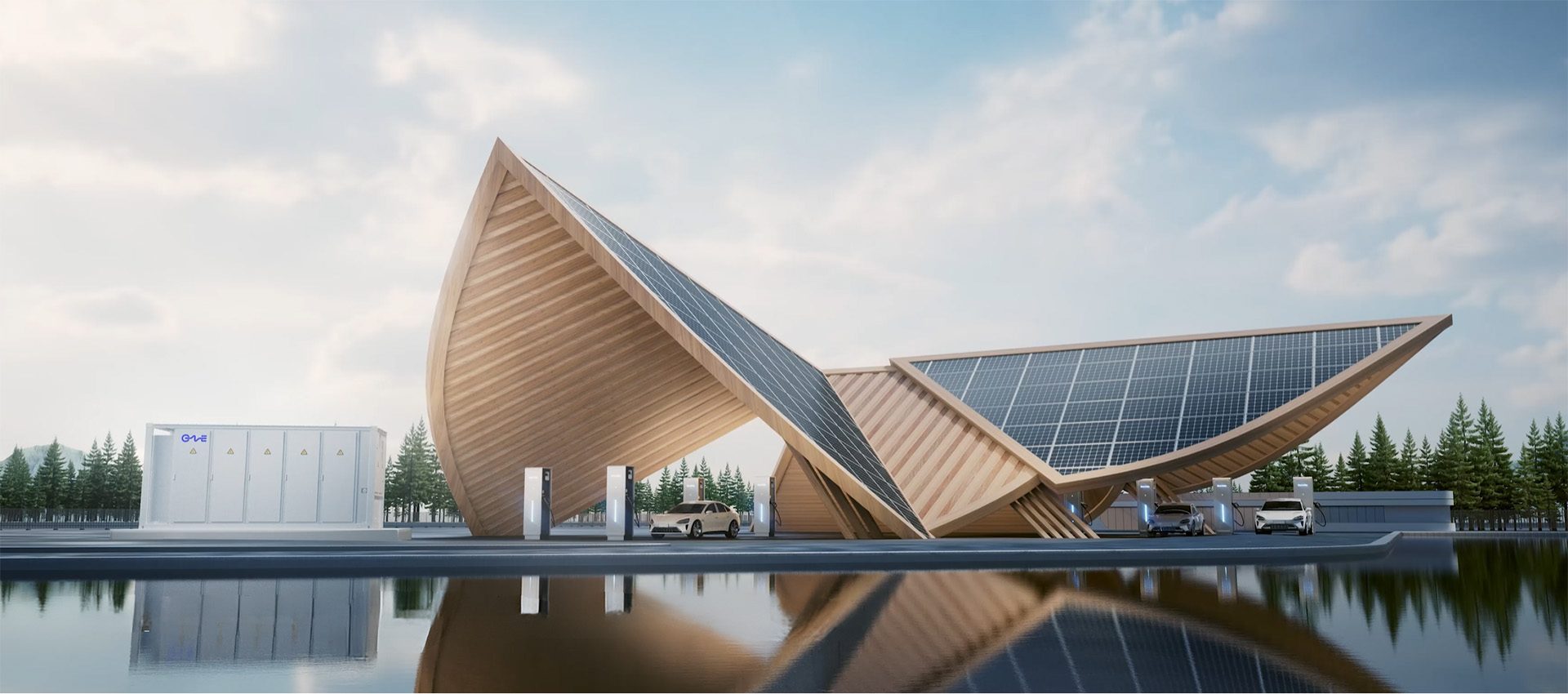

Smart BESS EV Charing Station

Integration of PV storage and EV charging, battery testing for a new renewable energy experience

Home > Smart BESS EV Charing Station

Product Advantage

Reducing light energy waste, improving the utilization rate of clean energy

Recharge to 80% in as little as 10 minutes

Provide battery testing service while charging

Modular design, flexible deployment, shortened construction period

Isolate the impact of charging load disturbance on the grid

Isolated island operation, switching between parallel and off gird to ensure stable charging

Liquid cooling system, perfluorohexanone electric box fire protection

Peak-valley arbitrage, compound benefits of multiple forms of business

Nimbus (EN)

Product Model	Nimbus
Battery Specifications
Battery Type	LFP
Battery Model	280Ah
Max. Energy Capacity	824kWh
Voltage Range	646.8～831.6Vdc
P-rate	1P
Cooling Method	Liquid cooling
Battery Compartment Ingress Protection	IP55
Weight	≈2.5T
Compliance	UN 38.3, UN 3480, IEC 62619, IEC 61000-6-2/-4, IEC 62477-1, IEC 63056, IEC 60730-1
Charging Pile
Max. Output Current	250A
Max. Power	180kW
Output Voltage Range	200～1000Vdc
Payment Method	RFID, Credit Card
Max. Number	18
PCS Specifications
Rated AC Power	100kW×N(N≤6)
Rated Grid Voltage	400Vac
Rated Grid Frequency	50/60Hz
Peak Efficiency	98%
Ingress Protection	IP54
System Dimensions (W×D×H)	810×275×845
Weight	≈1T
Compliance	EN 50549, G99, VDE AR-N 4105, VDE AR-N 4110, NTS Spain, IEC 62477, IEC 61000-6-2, IEC 61000-6-4
General Specifications
Operating Temperature Range	-25～55 °C (>45℃ derating)
Relative Humidity Range	0～95% (No Condensation)
Max. Working Altitude	4000m (>2000m derating)
Fire Safety Equipment	Aerosol or NVAC1230, Smoke detector, Heat detectors

Nimbus (US)

Product Model	Nimbus
Battery Specifications
Battery Type	LFP
Battery Model	280Ah
Max. Energy Capacity	824kWh
Voltage Range	646.8～831.6Vdc
P-rate	1P
Cooling Method	Liquid cooling
Battery Compartment Ingress Protection	IP55
Weight	≈2.5T
Compliance	UN 38.3, UN 3480, IEC 62619, IEC 61000-6-2/-4, IEC 62477-1, IEC 63056, IEC 60730-1, UL 1973, UL 9540A, UL9540
Charging Pile
Max. Output Current	250A
Max. Power	180kW
Output Voltage Range	200～1000Vdc
Payment Method	RFID, Credit Card
Max. Number	18
PCS Specifications
Rated AC Power	100kW×N(N≤6)
Rated Grid Voltage	480Vac
Rated Grid Frequency	50/60Hz
Peak Efficiency	98%
Ingress Protection	IP54
System Dimensions (W×D×H)	810×275×845
Weight	≈1T
Compliance	EN 50549, G99, VDE AR-N 4105, VDE AR-N 4110, NTS Spain, IEC 62477, IEC 61000-6-2, IEC 61000-6-4, UL 1741, IEEE1547:2018, UL1741 SB
General Specifications
Operating Temperature Range	-25～55 °C (>45℃ derating)
Relative Humidity Range	0～95% (No Condensation)
Max. Working Altitude	4000m (>2000m derating)
Fire Safety Equipment	Aerosol or NVAC1230, Smoke detector, Heat detectors
