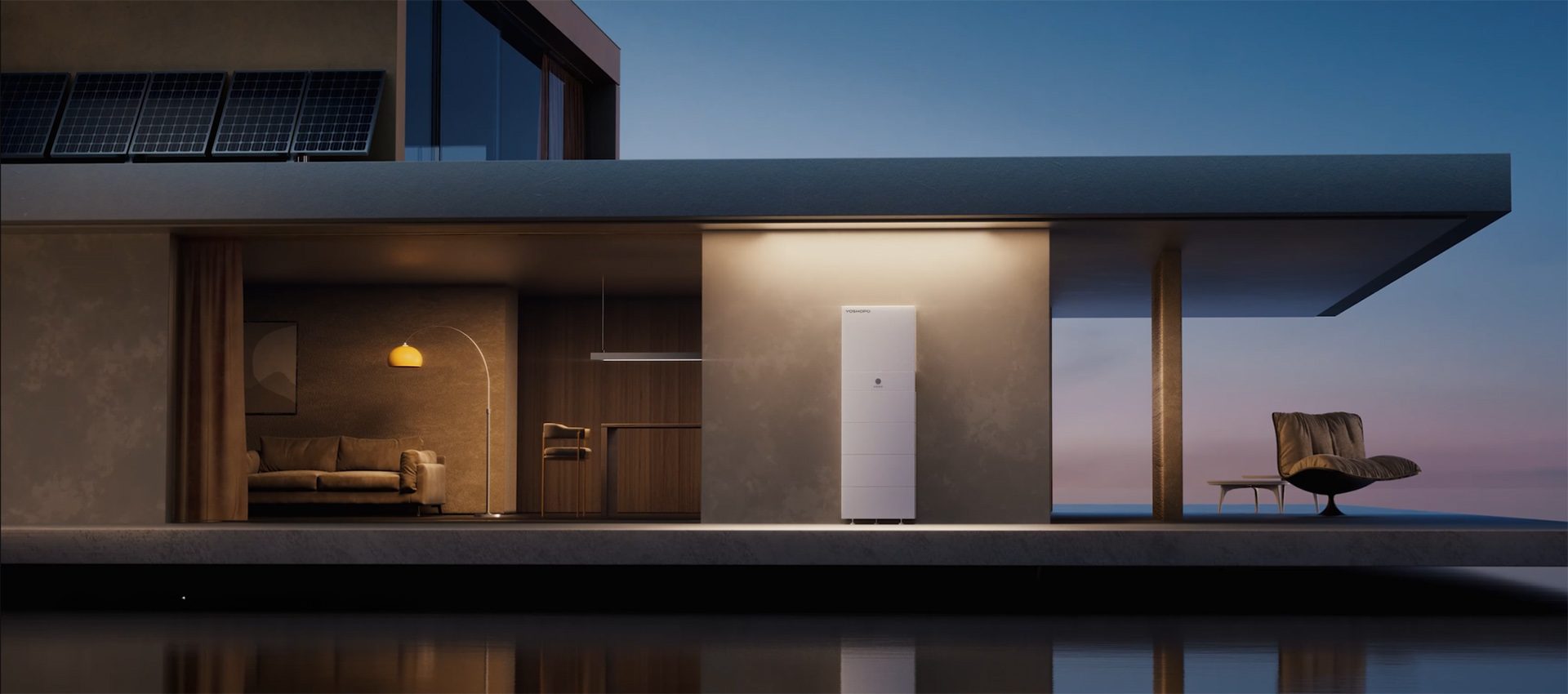

Residential ESS
Lorem ipsum dolor sit amet, inciderint referrentur te vim.
To realize self-generation and self-consumption of energy, reduce electricity expenses and ensure the safety of household electricity consumption.
Home >

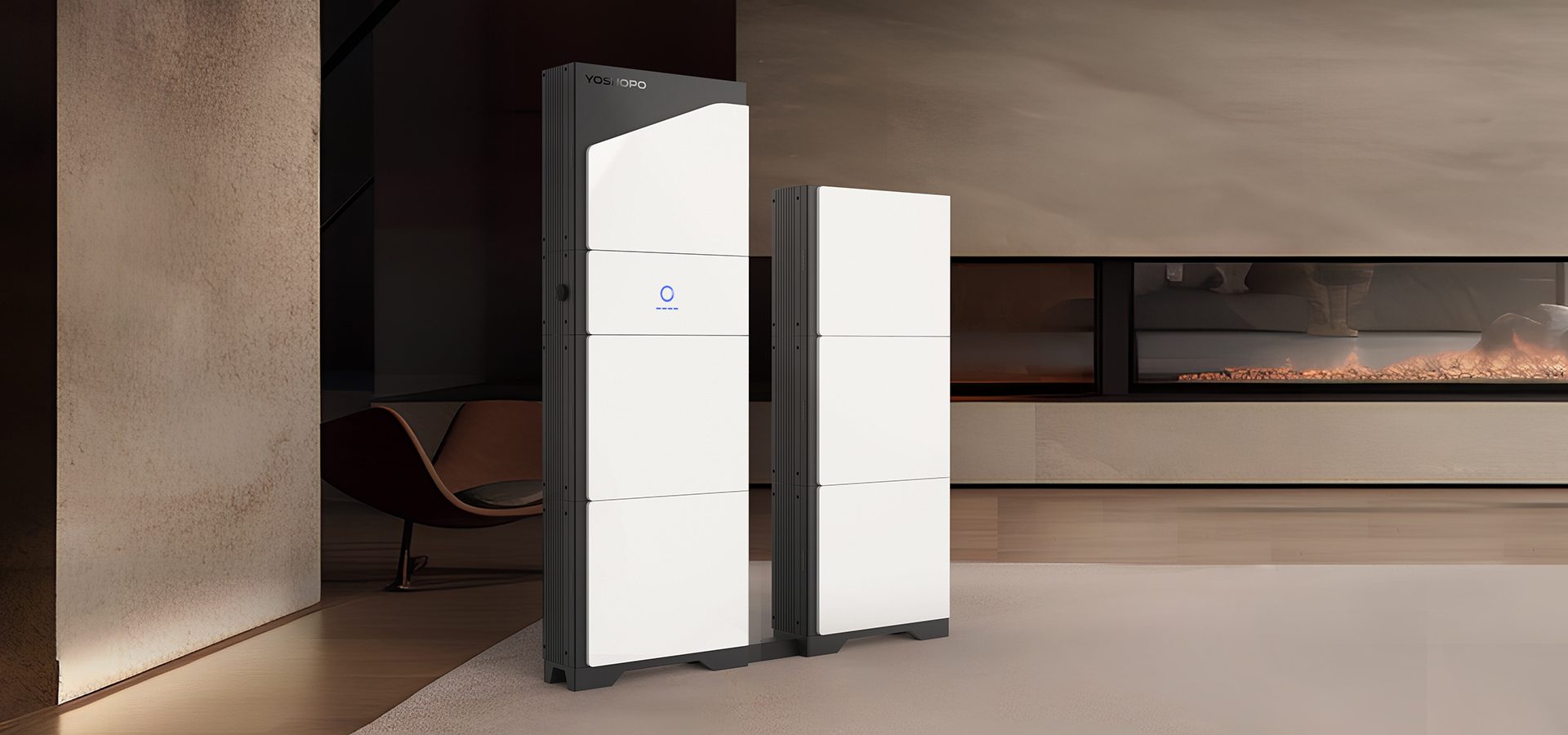

Product Advantages
Application Scenario
View All
House
Communication Base Station
Small Merchants
Supporting Products
Residential Energy Storage
EMS/Monitoring Centre
The Smart Remote Management Application
-
MIX I
-
MIX II
-

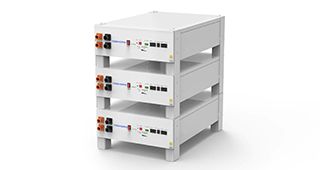

Nova 1000
-
Nova 2000
-
Nova 3000
-
Nova 5000
High Pressure Home Storage Machine
MIX I (M1-4.6/6kW) | |||
System specifications | |||
System model | M1-4.6-7 | M1-4.6-9.4 | M1-6-9.4 |
Inverter module model | Y1-H1P4.6K-H | ||
Maximum output power (kW) | 4.6 | 6 | |
On-grid and off-grid switching time (ms) | <20 | ||
Battery module model | BB-LFP-23Ah-S-A | ||
Number of electrical boxes | 3 | 4 | |
Nominal capacity (kWh) | 7 | 9.4 | |
Communication | |||
Display method | Battery indicator/working status/APP | ||
Communication method | Ethernet/WiFi/Bluetooth (remote query and control) | ||
General specifications | |||
Inverter module size (W*D*H) (mm) | 634*310*574 | ||
Inverter module weight (kg) | 36 | ||
Battery module size (W*D*H) (mm) | 634*310*190 | ||
Battery module weight (kg) | 32 | ||
System size (W*D*H) (mm) | 634*310*1628 | 634*310*1818 | |
System weight (kg) | 161 | 193 | |
Installation method | Stacked | ||
Protection level | IP66 | ||
Battery Type | LFP | ||
AC input | |||
Rated input voltage (Vac) | L/N/PE, 230 | ||
Maximum input current (A) | 40 | 52.2 | |
Rated AC frequency (Hz) | 50/60 | ||
Maximum bypass input power (kW) | 9.2 | 12 | |
Photovoltaic input | |||
MPPT voltage range (Vdc) | 120-550 | ||
Maximum photovoltaic input power (kW) | 7.5 | 9 | |
Number of photovoltaic strings | 2 | ||
MPPT quantity | 2 | ||
Maximum input current (A) | 13.5 | ||
Maximum input short-circuit current (A) | 17 | ||
AC output | |||
Rated output voltage (Vac) | L/N/PE, 230 | ||
Rated output current (A) | 20 | 26 | |
Rated AC frequency (Hz) | 50/60 | ||
Rated output power (kW) | 4.6 | 6 | |
Power factor | 0.8 | ||
Overload capacity | |||
101%≤load≤120% (min) | 10 | ||
121%≤load≤150% (s) | 60 | ||
Load>150% (ms) | 100 | ||
Environmental Parameters |
|||
Working temperature (℃) | -20-45 | ||
Working humidity (%) | 5-95 (no condensation) | ||
Working altitude (m) | <2000 | ||
Certification | |||
Safety certification | IEC 62109-1、IEC 62109-2、IEC 61000-6-1、IEC 61000-6-3 | ||
Grid certification | VDE-AR-N 4105、EN 50549-1、VDE 0126、EN 50549-PL、OVE、ONORM E 8001-4-712 | ||
Battery system certification | IEC 62619、UN 38.3、CE-EMC、IEC 60730-1、IEC 62477、VDE 2510-50 |
MIX I (M1P-6kW) | |||
System specifications | |||
System model | M1P-6-7 | M1P-6-9.4 | M1P-6-11.7 |
Inverter module model | Y1-H3P6K-H | ||
Maximum output power (kW) | 6 | ||
On-grid and off-grid switching time (ms) | <20 | ||
Battery module model | BB-LFP-23Ah-S-A | ||
Number of electrical boxes | 3 | 4 | 5 |
Nominal capacity (kWh) | 7 | 9.6 | 11.7 |
Communication | |||
Display method | Battery indicator/working status/APP | ||
Communication method | Ethernet/WiFi/Bluetooth (remote query and control) | ||
General specifications | |||
Inverter module size (W*D*H) (mm) | 634*310*574 | ||
Inverter module weight (kg) | 43 | ||
Battery module size (W*D*H) (mm) | 634*310*190 | ||
Battery module weight (kg) | 32 | ||
System size (W*D*H) (mm) | 634*310*1438 | 634*310*1628 | 634*310*1818 |
System weight (kg) | 161 | 193 | 225 |
Installation method | Stacked | ||
Protection level | IP66 | ||
Battery Type | LFP | ||
AC input | |||
Rated input voltage (Vac) | 3/N/PE, 230/400 | ||
Maximum input current (A) | 18.2 | ||
Rated AC frequency (Hz) | 50/60 | ||
Maximum bypass input power (kW) | 12 | ||
Photovoltaic input | |||
MPPT voltage range (Vdc) | 180-960 | ||
Maximum photovoltaic input power (kW) | 9 | ||
Number of photovoltaic strings | 2 | ||
MPPT quantity | 2 | ||
Maximum input current (A) | 18/18 | ||
Maximum input short-circuit current (A) | 23 | ||
AC output | |||
Rated output voltage (Vac) | 3/N/PE, 230/400 | ||
Rated output current (A) | 9.1 | ||
Rated AC frequency (Hz) | 50/60 | ||
Rated output power (kW) | 6 | ||
Power factor | 0.8 | ||
Overload capacity | |||
101%≤load≤120% (min) | 10 | ||
121%≤load≤150% (s) | 60 | ||
Load>150% (ms) | 100 | ||
Environmental Parameters |
|||
Working temperature (℃) | -20-45 | ||
Working humidity (%) | 5-95 (no condensation) | ||
Working altitude (m) | <2000 | ||
Certification | |||
Safety certification | IEC 62109-1、IEC 62109-2、IEC 61000-6-1、IEC 61000-6-3 | ||
Grid certification | VDE-AR-N 4105、EN 50549-1、VDE 0126、EN 50549-PL、OVE、ONORM E 8001-4-712 | ||
Battery system certification | IEC 62619、UN 38.3、CE-EMC、IEC 60730-1、IEC 62477、VDE 2510-50 |
MIX I (M1P-8/10kW) | |||
System specifications | |||
System model | M1P-8-9.4 | M1P-8-11.7 | M1P-10-11.7 |
Inverter module model | Y2-H3P8K-H | Y2-H3P10K-H | |
Maximum output power (kW) | 8 | 10 | |
On-grid and off-grid switching time (ms) | <20 | ||
Battery module model | BB-LFP-23Ah-S-A | ||
Number of electrical boxes | 4 | 5 | |
Nominal capacity (kWh) | 9.4 | 11.7 | |
Communication | |||
Display method | Battery indicator/working status/APP | ||
Communication method | Ethernet/WiFi/Bluetooth (remote query and control) | ||
General specifications | |||
Inverter module size (W*D*H) (mm) | 634*310*574 | ||
Inverter module weight (kg) | 43 | ||
Battery module size (W*D*H) (mm) | 634*310*190 | ||
Battery module weight (kg) | 32 | ||
System size (W*D*H) (mm) | 634*310*1628 | 634*310*1818 | |
System weight (kg) | 193 | 225 | |
Installation method | Stacked | ||
Protection level | IP66 | ||
Battery Type | LFP | ||
AC input | |||
Rated input voltage (Vac) | 3/N/PE, 230/400 | ||
Maximum input current (A) | 24.3 | 30.4 | |
Rated AC frequency (Hz) | 50/60 | ||
Maximum bypass input power (kW) | 16 | 20 | |
Photovoltaic input | |||
MPPT voltage range (Vdc) | 180-960 | ||
Maximum photovoltaic input power (kW) | 12 | 15 | |
Number of photovoltaic strings | 2 | ||
MPPT quantity | 2 | ||
Maximum input current (A) | 18/18 | ||
Maximum input short-circuit current (A) | 23 | ||
AC output | |||
Rated output voltage (Vac) | 3/N/PE, 230/400 | ||
Rated output current (A) | 12.2 | 15.2 | |
Rated AC frequency (Hz) | 50/60 | ||
Rated output power (kW) | 8 | 10 | |
Power factor | 0.8 | ||
Overload capacity | |||
101%≤load≤120% (min) | 10 | ||
121%≤load≤150% (s) | 60 | ||
Load>150% (ms) | 100 | ||
Environmental Parameters |
|||
Working temperature (℃) | -20-45 | ||
Working humidity (%) | 5-95 (no condensation) | ||
Working altitude (m) | <2000 | ||
Certification | |||
Safety certification | IEC 62109-1、IEC 62109-2、IEC 61000-6-1、IEC 61000-6-3 | ||
Grid certification | VDE-AR-N 4105、EN 50549-1、VDE 0126、EN 50549-PL、OVE、ONORM E 8001-4-712 | ||
Battery system certification | IEC 62619、UN 38.3、CE-EMC、IEC 60730-1、VDE 2510-50、IEC 62477 |
High Pressure Home Storage Machine
MIX II (M2-6kW) | ||||
System specifications | ||||
System model | M2-6-9.4 | M2-6-14.1 | M2-6-18.8 | M2-6-23.5 |
Inverter module model | Y1-H3P6K-H | |||
Maximum output power (kW) | 6 | |||
On-grid and off-grid switching time (ms) | <10 | |||
Battery module model | BB-LFP-46Ah-S-B | |||
Number of electrical boxes | 2 | 3 | 4 | 5 |
Nominal capacity (kWh) | 9.4 | 14.1 | 18.8 | 23.5 |
Communication |
||||
Display method | Battery indicator/working status/APP | |||
Communication method | Ethernet/WiFi/Bluetooth (remote query and control) | |||
General specifications |
||||
Inverter module size (W*D*H) (mm) | 669*210*600 | |||
Inverter module weight (kg) | 42 | |||
Battery module size (W*D*H) (mm) | 669*210*510 | |||
Battery module weight (kg) | 53 | |||
System size (W*D*H) (mm) | 684*210*1923 | 1603*210*1413 | 1603*210*1923 | 1603*210*1923 |
System weight (kg) | 165 | 226 | 279 | 332 |
Installation method | Wall-mounted | |||
Protection level | IP66 | |||
Battery Type | LFP | |||
AC input |
||||
Rated input voltage (Vac) | 3/N/PE, 230/400 | |||
Maximum input current (A) | 18.2 | |||
Rated AC frequency (Hz) | 50/60 | |||
Maximum bypass input power (kW) | 12 | |||
Photovoltaic input |
||||
MPPT voltage range (Vdc) | 180-960 | |||
Maximum photovoltaic input power (kW) | 9 | |||
Number of photovoltaic strings | 2 | |||
MPPT quantity | 2 | |||
Maximum input current (A) | 18/18 | |||
Maximum input short-circuit current (A) | 23 | |||
AC output |
||||
Rated output voltage (Vac) | 3/N/PE, 230/400 | |||
Rated output current (A) | 9.1 | |||
Rated AC frequency (Hz) | 50/60 | |||
Rated output power (kW) | 6 | |||
Power factor | 0.8 | |||
Overload capacity |
||||
101%≤load≤120% (min) | 10 | |||
121%≤load≤150% (s) | 60 | |||
Load>150% (ms) | 100 | |||
Environmental Parameters |
||||
Working temperature (℃) | -20-45 | |||
Working humidity (%) | 5-95 (no condensation) | |||
Working altitude (m) | <2000 | |||
Certification |
||||
Safety certification | IEC 62109-1、IEC 62109-2、IEC 61000-6-1、IEC 61000-6-3 | |||
Grid certification | VDE-AR-N 4105、EN 50549-1、VDE 0126、EN 50549-PL、OVE、ONORM E 8001-4-712 | |||
Battery system certification | IEC 62619、UN 38.3、CE-EMC、IEC 60730-1、VDE 2510-50、IEC 62477 |
MIX II (M2-8kW) | |||
System specifications | |||
System model | M2-8-14.1 | M2-8-18.8 | M2-8-23.5 |
Inverter module model | Y1-H3P8K-H | ||
Maximum output power (kW) | 8 | ||
On-grid and off-grid switching time (ms) | <20 | ||
Battery module model | BB-LFP-46Ah-S-B | ||
Number of electrical boxes | 3 | 4 | 5 |
Nominal capacity (kWh) | 14.1 | 18.8 | 23.5 |
Communication | |||
Display method | Battery indicator/working status/APP | ||
Communication method | Ethernet/WiFi/Bluetooth (remote query and control) | ||
General specifications | |||
Inverter module size (W*D*H) (mm) | 669*210*570 | ||
Inverter module weight (kg) | 42 | ||
Battery module size (W*D*H) (mm) | 669*210*510 | ||
Battery module weight (kg) | 53 | ||
System size (W*D*H) (mm) | 1603*210*1413 | 1603*210*1923 | 1603*210*1923 |
System weight (kg) | 226 | 279 | 332 |
Installation method | Wall-mounted | ||
Protection level | IP66 | ||
Battery Type | LFP | ||
AC input | |||
Rated input voltage (Vac) | 3/N/PE, 230/400 | ||
Maximum input current (A) | 24.3 | ||
Rated AC frequency (Hz) | 50/60 | ||
Maximum bypass input power (kW) | 16 | ||
Photovoltaic input | |||
MPPT voltage range (Vdc) | 180-960 | ||
Maximum photovoltaic input power (kW) | 12 | ||
Number of photovoltaic strings | 2 | ||
MPPT quantity | 2 | ||
Maximum input current (A) | 18/18 | ||
Maximum input short-circuit current (A) | 23 | ||
AC output | |||
Rated output voltage (Vac) | 3/N/PE, 230/400 | ||
Rated output current (A) | 12.2 | ||
Rated AC frequency (Hz) | 50/60 | ||
Rated output power (kW) | 8 | ||
Power factor | 0.8 | ||
Overload capacity | |||
101%≤load≤120% (min) | 10 | ||
121%≤load≤150% (s) | 60 | ||
Load>150% (ms) | 100 | ||
Environmental Parameters |
|||
Working temperature (℃) | -20-45 | ||
Working humidity (%) | 5-95 (no condensation) | ||
Working altitude (m) | <2000 | ||
Certification | |||
Safety certification | IEC 62109-1、IEC 62109-2、IEC 61000-6-1、IEC 61000-6-3 | ||
Grid certification | VDE-AR-N 4105、EN 50549-1、VDE 0126、EN 50549-PL、OVE、ONORM E 8001-4-712 | ||
Battery system certification | IEC 62619、UN 38.3、CE-EMC、IEC 60730-1、IEC 62477、VDE 2510-50 |
MIX II (M2-10kW) | ||
System specifications | ||
System model | M2-10-18.8 | M2-10-23.5 |
Inverter module model | Y1-H3P10K-H | |
Maximum output power (kW) | 10 | |
On-grid and off-grid switching time (ms) | <20 | |
Battery module model | BB-LFP-46Ah-S-B | |
Number of electrical boxes | 4 | 5 |
Nominal capacity (kWh) | 18.8 | 23.5 |
Communication | ||
Display method | Battery indicator/working status/APP | |
Communication method | Ethernet/WiFi/Bluetooth (remote query and control) | |
General specifications | ||
Inverter module size (W*D*H) (mm) | 669*210*570 | |
Inverter module weight (kg) | 42 | |
Battery module size (W*D*H) (mm) | 669*210*510 | |
Battery module weight (kg) | 53 | |
System size (W*D*H) (mm) | 1603*210*1923 | 1603*210*1923 |
System weight (kg) | 279 | 332 |
Installation method | Wall-mounted | |
Protection level | IP66 | |
Battery Type | LFP | |
AC input | ||
Rated input voltage (Vac) | 3/N/PE, 230/400 | |
Maximum input current (A) | 30.4 | |
Rated AC frequency (Hz) | 50/60 | |
Maximum bypass input power (kW) | 20 | |
Photovoltaic input | ||
MPPT voltage range (Vdc) | 180-960 | |
Maximum photovoltaic input power (kW) | 15 | |
Number of photovoltaic strings | 2 | |
MPPT quantity | 2 | |
Maximum input current (A) | 18/18 | |
Maximum input short-circuit current (A) | 23 | |
AC output | ||
Rated output voltage (Vac) | 3/N/PE, 230/400 | |
Rated output current (A) | 15.2 | |
Rated AC frequency (Hz) | 50/60 | |
Rated output power (kW) | 10 | |
Power factor | 0.8 | |
Overload capacity | ||
101%≤load≤120% (min) | 10 | |
121%≤load≤150% (s) | 60 | |
Load>150% (ms) | 100 | |
Environmental Parameters |
||
Working temperature (℃) | -20-45 | |
Working humidity (%) | 5-95 (no condensation) | |
Working altitude (m) | <2000 | |
Certification | ||
Safety certification | IEC 62109-1、IEC 62109-2、IEC 61000-6-1、IEC 61000-6-3 | |
Grid certification | VDE-AR-N 4105、EN 50549-1、VDE 0126、EN 50549-PL、OVE、ONORM E 8001-4-712 | |
Battery system certification | IEC 62619、UN 38.3、CE-EMC、IEC 60730-1、VDE 2510-50、IEC 62477 |
MIX II (M2P-6kW) | ||||
System specifications | ||||
System model | M2P-6-9.4 | M2P-6-14.1 | M2P-6-18.8 | M2P-6-23.5 |
Inverter module model | Y2-H3P6K-H | |||
Maximum output power (kW) | 6 | |||
On-grid and off-grid switching time (ms) | <10 | |||
Battery module model | BB-LFP-46Ah-S-B | |||
Number of electrical boxes | 2 | 3 | 4 | 5 |
Nominal capacity (kWh) | 9.4 | 14.1 | 18.8 | 23.5 |
Communication |
||||
Display method | Battery indicator/working status/APP | |||
Communication method | Ethernet/WiFi/Bluetooth (remote query and control) | |||
General specifications |
||||
Inverter module size (W*D*H) (mm) | 669*267*600 | |||
Inverter module weight (kg) | 49.5 | |||
Battery module size (W*D*H) (mm) | 669*267*510 | |||
Battery module weight (kg) | 53 | |||
System size (W*D*H) (mm) | 684*267*1953 | 1603*267*1443 | 1603*267*1953 | 1603*267*1953 |
System weight (kg) | 172 | 233 | 286 | 339 |
Installation method | Wall-mounted | |||
Protection level | IP66 | |||
Battery Type | LFP | |||
AC input |
||||
Rated input voltage (Vac) | 3/N/PE, 230/400 | |||
Maximum input current (A) | 13.8 | |||
Rated AC frequency (Hz) | 50/60 | |||
Maximum bypass input power (kW) | 9 | |||
Photovoltaic input |
||||
MPPT voltage range (Vdc) | 200-850 | |||
Maximum photovoltaic input power (kW) | 9.6 | |||
Number of photovoltaic strings | 4 | |||
MPPT quantity | 4 | |||
Maximum input current (A) | 16/16/16/16 | |||
Maximum input short-circuit current (A) | 24 | |||
AC output |
||||
Rated output voltage (Vac) | 3/N/PE, 230/400 | |||
Rated output current (A) | 9.1 | |||
Rated AC frequency (Hz) | 50/60 | |||
Rated output power (kW) | 6 | |||
Power factor | 0.8 | |||
Overload capacity |
||||
101%≤load≤120% (min) | 10 | |||
121%≤load≤150% (s) | 60 | |||
Load>150% (ms) | 100 | |||
Environmental Parameters |
||||
Working temperature (℃) | -20-45 | |||
Working humidity (%) | 5-95 (no condensation) | |||
Working altitude (m) | <2000 | |||
Certification |
||||
Safety certification | IEC 62109-1、IEC 62109-2、IEC 61000-6-1、IEC 61000-6-3 | |||
Grid certification | VDE-AR-N 4105、EN 50549-1、VDE 0126、EN 50549-PL、OVE、ONORM E 8001-4-712 | |||
Battery system certification | IEC 62619、UN 38.3、CE-EMC、IEC 60730-1、VDE 2510-50、IEC 62477 |
MIX II (M2P-8/10kW) | ||||
System specifications | ||||
System model | M2P-8-9.4 | M2P-8-14.1 | M2P-8-18.8 | M2P-8-23.5 |
Inverter module model | Y2-H3P8K-H | |||
Maximum output power (kW) | 8 | |||
On-grid and off-grid switching time (ms) | <10 | |||
Battery module model | BB-LFP-46Ah-S-B | |||
Number of electrical boxes | 2 | 3 | 4 | 5 |
Nominal capacity (kWh) | 9.4 | 14.1 | 18.8 | 23.5 |
Communication | ||||
Display method | Battery indicator/working status/APP | |||
Communication method | Ethernet/WiFi/Bluetooth (remote query and control) | |||
General specifications | ||||
Inverter module size (W*D*H) (mm) | 669*267*600 | |||
Inverter module weight (kg) | 49.5 | |||
Battery module size (W*D*H) (mm) | 669*267*510 | |||
Battery module weight (kg) | 53 | |||
System size (W*D*H) (mm) | 684*267*1953 | 1603*267*1443 | 1603*267*1953 | 1603*267*1953 |
System weight (kg) | 172 | 233 | 286 | 339 |
Installation method | Wall-mounted | |||
Protection level | IP66 | |||
Battery Type | LFP | |||
AC input | ||||
Rated input voltage (Vac) | 3/N/PE, 230/400 | |||
Maximum input current (A) | 18.2 | |||
Rated AC frequency (Hz) | 50/60 | |||
Maximum bypass input power (kW) | 12 | |||
Photovoltaic input | ||||
MPPT voltage range (Vdc) | 200-850 | |||
Maximum photovoltaic input power (kW) | 12.8 | |||
Number of photovoltaic strings | 4 | |||
MPPT quantity | 4 | |||
Maximum input current (A) | 16/16/16/16 | |||
Maximum input short-circuit current (A) | 24 | |||
AC output | ||||
Rated output voltage (Vac) | 3/N/PE, 230/400 | |||
Rated output current (A) | 12.2 | |||
Rated AC frequency (Hz) | 50/60 | |||
Rated output power (kW) | 8 | |||
Power factor | 0.8 | |||
Overload capacity | ||||
101%≤load≤120% (min) | 10 | |||
121%≤load≤150% (s) | 60 | |||
Load>150% (ms) | 100 | |||
Environmental Parameters | ||||
Working temperature (℃) | -20-45 | |||
Working humidity (%) | 5-95 (no condensation) | |||
Working altitude (m) | <2000 | |||
Certification | ||||
Safety certification | IEC 62109-1、IEC 62109-2、IEC 61000-6-1、IEC 61000-6-3 | |||
Grid certification | VDE-AR-N 4105、EN 50549-1、VDE 0126、EN 50549-PL、OVE、ONORM E 8001-4-712 | |||
Battery system certification | IEC 62619、UN 38.3、CE-EMC、IEC 60730-1、VDE 2510-50、IEC 62477 |
MIX II (M2P-8/10kW) | ||||
System specifications | ||||
System model | M2P-10-9.4 | M2P-10-14.1 | M2P-10-18.8 | M2P-10-23.5 |
Inverter module model | Y2-H3P10K-H | |||
Maximum output power (kW) | 10 | |||
On-grid and off-grid switching time (ms) | <10 | |||
Battery module model | BB-LFP-46Ah-S-B | |||
Number of electrical boxes | 2 | 3 | 4 | 5 |
Nominal capacity (kWh) | 9.4 | 14.1 | 18.8 | 23.5 |
Communication | ||||
Display method | Battery indicator/working status/APP | |||
Communication method | Ethernet/WiFi/Bluetooth (remote query and control) | |||
General specifications | ||||
Inverter module size (W*D*H) (mm) | 669*267*600 | |||
Inverter module weight (kg) | 49.5 | |||
Battery module size (W*D*H) (mm) | 669*267*510 | |||
Battery module weight (kg) | 53 | |||
System size (W*D*H) (mm) | 684*267*1953 | 1603*267*1443 | 1603*267*1953 | 1603*267*1953 |
System weight (kg) | 172 | 233 | 286 | 339 |
Installation method | Wall-mounted | |||
Protection level | IP66 | |||
Battery Type | LFP | |||
AC input | ||||
Rated input voltage (Vac) | 3/N/PE, 230/400 | |||
Maximum input current (A) | 22.8 | |||
Rated AC frequency (Hz) | 50/60 | |||
Maximum bypass input power (kW) | 15 | |||
Photovoltaic input | ||||
MPPT voltage range (Vdc) | 200-850 | |||
Maximum photovoltaic input power (kW) | 16 | |||
Number of photovoltaic strings | 4 | |||
MPPT quantity | 4 | |||
Maximum input current (A) | 16/16/16/16 | |||
Maximum input short-circuit current (A) | 24 | |||
AC output | ||||
Rated output voltage (Vac) | 3/N/PE, 230/400 | |||
Rated output current (A) | 15.2 | |||
Rated AC frequency (Hz) | 50/60 | |||
Rated output power (kW) | 10 | |||
Power factor | 0.8 | |||
Overload capacity | ||||
101%≤load≤120% (min) | 10 | |||
121%≤load≤150% (s) | 60 | |||
Load>150% (ms) | 100 | |||
Environmental Parameters | ||||
Working temperature (℃) | -20-45 | |||
Working humidity (%) | 5-95 (no condensation) | |||
Working altitude (m) | <2000 | |||
Certification | ||||
Safety certification | IEC 62109-1、IEC 62109-2、IEC 61000-6-1、IEC 61000-6-3 | |||
Grid certification | VDE-AR-N 4105、EN 50549-1、VDE 0126、EN 50549-PL、OVE、ONORM E 8001-4-712 | |||
Battery system certification | IEC 62619、UN 38.3、CE-EMC、IEC 60730-1、VDE 2510-50、IEC 62477 |
Low Voltage Home Electrical Cabinet
Battery Cell Model | Lithium Iron Phosphate 100Ah |
Number of Electric Box | 1; 2; 3; 4 (Max 16PCS) |
Nominal Capacity (kWh) | 5; 10; 15; 20 |
Voltage Range | 44.8~57.6 |
Standard Charge and Discharge Current (A) | 50/100; 100/110; 100/110; 100/110 |
Max.Charging Discharging Current (A) | 100/100; 110/110; 110/110; 110/110 |
Dimensions (W*D*H) (mm) | 392*591*198; 392*591*391; 392*591*584; 392*591*777 |
Weight (kg) | 45; 93; 140; 186 |
Discharge Depth (%) | 95 |
Communication Method | RS485/CAN/Ethernet (Remote Maintenance) |
Protection Class | IP22 |
Operating Temperature (°C) | Charging 0~45; Electric Discharge -20~45 |
Operating Humidity ( % ) | 5~95 (Non-condensing) |
Operating Altitude ( m ) | <2000 |
Cycle Number (25℃, 0.5C/0.5C@70%SOH) | ≥6000 |
Matching Inverter | Victron, SMA, Goodway, Jinlang, Guruiwatt, Lux Power, First Flight, Sanjing, Deye, Magray and other brand inverters |
Certification | IEC62619; UL1973; UN38.3; CE-EMC; FCC; UL 60730-1; VDE2510-50; UL9540A |
Low Voltage Home Electrical Cabinet
Battery Cell Model | Lithium Iron Phosphate 280Ah |
Number of Electric Box | 1 (Supports 16 Parallel Expansion) |
Nominal Capacity (kWh) | 14.3 |
Voltage Range | 44.8~57.6 |
Standard Charge and Discharge Current (A) | 140 |
Max.Charging Discharging Current (A) | 200 |
Dimensions (W*D*H) (mm) | 735*217*1163 |
Weight (kg) | 170 |
Discharge Depth (%) | 95 |
Communication Method | RS485/CAN/Ethernet (Remote Maintenance) |
Protection Class | IP66 |
Operating Temperature (°C) | Charging-10~45; Electric Discharge-20~45 |
Operating Humidity ( % ) | 5~95 (Non-condensing) |
Operating Altitude ( m ) | <2000 |
Cycle Number (25℃, 0.5C/0.5C@70%SOH) | ≥8000 |
Matching Inverter | Victron, SMA, Goodway, Jinlang, Guruiwatt, Lux Power, First Flight, Sanjing, Deye, Magray and other brand inverters |
Certification | IEC62619, UL1973, UN38.3, CE-EMC, FCC, UL 60730-1 |
High Voltage Home Electric Cabinet
Battery Cell Model | Lithium Iron Phosphate 23Ah |
Number of Electric Box | 2; 3; 4; 5 |
Nominal Capacity (kWh) | 4.7; 7; 9.4; 11.8 |
Voltage Range | 172.8~230.4; 259.2~345.6; 345.6~460.8; 432~576 |
Standard Charge and Discharge Current (A) | 11.5/23 |
Max.Charging Discharging Current (A) | 25/36 |
Dimensions (W*D*H) (mm) | 480*275*725; 480*275*987; 480*275*1249; 480*275*1511 |
Weight (kg) | 80; 105; 130; 155 |
Discharge Depth (%) | 95 |
Communication Method | RS485/CAN/Ethernet (Remote Maintenance) |
Protection Class | IP22 (IP65 Selectable) |
Operating Temperature (°C) | -20~50 |
Operating Humidity ( % ) | 5~95 (Non-condensing) |
Operating Altitude ( m ) | <2000 |
Cycle Number (25℃, 0.5C/0.5C@70%SOH) | ≥6000 |
Matching Inverter | Goodway, Guruiwatt, Naton, Lux Power and Other Brand Inverters |
Certification | CE-EMC, IEC62619, VDE2510-50, IEC 60730-1, UN38.3, IEC62477-1 |
High Voltage Home Electric Cabinet
Battery Cell Model | Lithium Iron Phosphate 23Ah |
Number of Electric Box | 2; 3; 4; 5 |
Nominal Capacity (kWh) | 9.4; 14; 18.8; 23.5 |
Voltage Range | 172.8~230.4; 259.2~345.6; 345.6~460.8; 432~576 |
Standard Charge and Discharge Current (A) | 23/40 |
Max.Charging Discharging Current (A) | 50/50 |
Dimensions (W*D*H) (mm) | 657*175*1351; 657*175*1861; 1657*175*1351; 1657*175*1861 |
Weight (kg) | 114; 163; 212; 261 |
Discharge Depth (%) | 95 |
Communication Method | RS485/CAN/Ethernet (Remote Maintenance) |
Protection Class | IP66 |
Operating Temperature (°C) | -20~50 |
Operating Humidity ( % ) | 5~95 (Non-condensing) |
Operating Altitude ( m ) | <2000 |
Cycle Number (25℃, 0.5C/0.5C@70%SOH) | ≥6000 |
Matching Inverter | Goodway, Guruiwatt, Naton, Lux Power and Other Brand Inverters |
Certification | IEC62619, UN38.3, CE-EMC, IEC 60730-1, VDE2510-50, IEC62477-1 |
