7 Engineering Parameters for Integrating a Solar Panel Energy Storage Battery

The global proliferation of photovoltaic (PV) generation has fundamentally altered the physical and economic dynamics of electrical grids. While solar power provides a highly scalable source of renewable energy, its inherent intermittency introduces severe operational challenges for Transmission System Operators (TSOs). The non-dispatchable nature of solar irradiance results in critical misalignments between peak generation hours and peak load demand. To transition from volatile intermittent generation to stable, dispatchable baseload power, the integration of a highly engineered solar panel energy storage battery is a strict technical necessity.

Modern utility-scale and commercial microgrids require more than simple capacity additions; they require sophisticated electrochemical architectures capable of sub-second frequency response, peak shaving, and active power smoothing. This analysis examines the thermodynamic principles, power electronic topologies, and degradation economics that govern the deployment of advanced stationary storage coupled with solar arrays.

1. The Physics of Photovoltaic Intermittency and the “Duck Curve”

The primary engineering constraint of solar generation is its complete reliance on real-time solar irradiance. Transient cloud cover can cause massive ramp-rate deviations, dropping the active power output of a megawatt-scale PV array by over 70% within seconds. Traditional synchronous generators (such as gas turbines) possess physical rotational inertia and require minutes to ramp up, making them incapable of neutralizing these high-frequency solar fluctuations.

Furthermore, the macro-level impact of solar generation is visualized through the “Duck Curve.” During midday, massive solar overgeneration drives net grid demand to historic lows, often resulting in negative wholesale electricity prices and forced curtailment of renewable assets. As the sun sets, solar generation collapses precisely when evening residential and commercial load peaks, creating a massive, dangerous ramp-rate requirement. Implementing a solar panel energy storage battery actively absorbs this midday overgeneration and physically shifts the energy geographically and temporally, discharging it during the high-demand evening ramp to maintain system voltage and frequency stability.

2. Chemical Topologies: The Dominance of Lithium Iron Phosphate (LFP)

Selecting the appropriate electrochemical cell is the foundational decision in system design. Historically, the industry experimented with various lithium-ion chemistries, including Nickel Manganese Cobalt (NMC). While NMC offers a higher volumetric energy density, its thermal instability and reliance on expensive, supply-chain-constrained cobalt make it suboptimal for large-scale stationary applications.

Today, the industry standard for a solar panel energy storage battery is overwhelmingly Lithium Iron Phosphate (LiFePO4 or LFP). LFP chemistry provides several critical engineering advantages:

• Thermal Stability: LFP cells have a substantially higher thermal runaway threshold (exceeding 270°C) compared to NMC. They do not release oxygen during a thermal event, drastically reducing the severity of potential fires.
• Extended Cycle Life: A high-quality LFP cell can exceed 8,000 to 10,000 cycles at an 80% Depth of Discharge (DoD) before its State of Health (SoH) degrades to 70%. This directly aligns with the 20-to-25-year operational lifecycle of the adjacent solar PV modules.
• Current Delivery: LFP architectures can sustain high continuous charge and discharge rates (C-rates), essential for both soaking up sudden solar spikes and providing rapid frequency response to the grid.

3. DC-Coupled vs. AC-Coupled Integration Architectures

Connecting a battery to a solar array requires careful consideration of power electronics. There are two primary architectural methodologies: AC coupling and DC coupling. Each topology serves distinct application requirements and presents different efficiency metrics.

AC-Coupled Architectures

In an AC-coupled system, the solar panels and the battery operate on separate inverters. The DC power generated by the solar panels is converted to AC by the PV inverter. If the battery needs to charge, this AC power is converted back to DC by the battery’s bidirectional power conversion system (PCS). While AC coupling is highly advantageous for retrofitting existing solar sites, the multiple conversion stages (DC-to-AC-to-DC) typically result in a 5% to 7% round-trip efficiency loss.

DC-Coupled Architectures and Inverter Clipping

A DC-coupled solar panel energy storage battery shares a single, highly sophisticated hybrid inverter. The PV array feeds DC power directly into a common DC bus, which charges the battery without any intermediate AC conversion. This topology reduces conversion losses to less than 2%.

More importantly, DC coupling captures “clipped” energy. Utility-scale solar arrays are often designed with a DC-to-AC ratio of 1.3 to 1.5 (oversizing the DC panels relative to the AC inverter). During peak irradiance, the PV array produces more DC power than the inverter can convert to AC, forcing the inverter to “clip” or discard the excess power. A DC-coupled battery captures this clipped DC power directly behind the inverter, salvaging thousands of megawatt-hours of otherwise lost generation over the project’s lifespan.

4. Advanced Thermal Management and Battery Management Systems (BMS)

The operational efficiency and degradation curve of lithium-ion cells are highly sensitive to temperature variations. Operating a cell outside its optimal thermal window (typically 20°C to 25°C) accelerates solid electrolyte interphase (SEI) layer growth, permanently stranding capacity. In massive utility-scale deployments, managing the thermal delta (ΔT) across thousands of cells is a complex thermodynamic challenge.

Leading integration authorities, such as CNTE (Contemporary Nebula Technology Energy Co., Ltd.), deploy highly calibrated liquid-cooling architectures. By circulating a water-glycol mixture through micro-channel cold plates directly adjacent to the battery cells, liquid cooling maintains a system-wide ΔT of less than 3°C. This active thermal management drastically outperforms traditional HVAC air-cooling, reducing auxiliary power consumption by up to 20% and extending the system’s operational lifecycle.

Simultaneously, the Battery Management System (BMS) executes active cell balancing. Due to minute manufacturing tolerances, cells within a module charge and discharge at slightly different rates. The BMS continuously redistributes current from higher-voltage cells to lower-voltage cells, ensuring the entire rack reaches a 100% State of Charge (SoC) simultaneously, thereby preventing localized overvoltage and thermal stress.

5. Optimizing the Levelized Cost of Storage (LCOS)

From a financial engineering perspective, assessing the viability of a storage asset relies on the Levelized Cost of Storage (LCOS). This metric accounts for the total capital expenditure (CAPEX), lifecycle operational expenditure (OPEX), charging costs, and degradation models to determine the true cost per megawatt-hour discharged.

To optimize LCOS, facility managers utilize sophisticated Energy Management System (EMS) software to perform “revenue stacking.” A single battery asset will dynamically shift between operational modes based on real-time market pricing:

• Energy Arbitrage: Charging the battery when solar generation is high and wholesale prices are negative, and discharging during peak evening demand when prices are highest.
• Ancillary Services: Bidding reserved capacity into Fast Frequency Response (FFR) markets, where grid operators pay a premium for sub-second active power injection to stabilize the grid frequency.
• Demand Charge Reduction: For commercial facilities, utility bills are often dictated by the single highest 15-minute peak load of the month (demand charges). The battery actively monitors the facility load and discharges during these peaks to artificially lower the apparent draw from the grid.

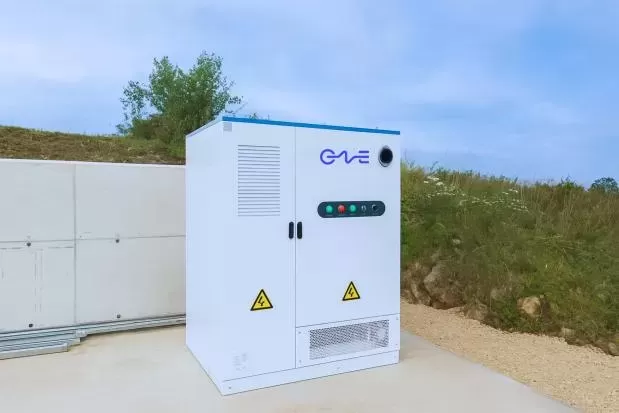

6. Commercial and Industrial (C&I) Microgrid Deployment

Beyond utility-scale generation, the commercial and industrial sector relies heavily on distributed energy resources to ensure operational continuity. Manufacturing plants, data centers, and cold-storage facilities face catastrophic financial losses during grid outages. By pairing rooftop solar arrays with a commercial-grade solar panel energy storage battery, these facilities establish resilient, localized microgrids.

During a grid failure, the hybrid inverter detects the loss of grid voltage, physically disconnects from the utility via an automatic transfer switch (islanding), and seamlessly forms a localized voltage and frequency reference. Partnering with tier-one providers like CNTE (Contemporary Nebula Technology Energy Co., Ltd.) ensures that these microgrid systems possess the grid-forming capabilities required to start heavy inductive loads, such as massive HVAC compressors and industrial motors, strictly using solar and battery reserves without relying on mechanical diesel generators.

7. The Future of Solar Integration Engineering

The total decarbonization of the global energy matrix is mechanically impossible without dispatchable energy storage. The transition from merely generating solar power to actively managing it represents the next era of grid engineering. Implementing a high-efficiency solar panel energy storage battery mitigates transient ramp rates, captures clipped DC power, and provides the synthetic inertia necessary to replace retiring thermal power plants. By prioritizing LFP chemistry, precision liquid thermal management, and robust DC-coupled architectures, asset developers can ensure their renewable infrastructure delivers maximum financial yield and uncompromising grid reliability for decades to come.

Frequently Asked Questions (FAQ)

Q1: What is the primary advantage of a DC-coupled solar panel energy storage battery over an AC-coupled system?

A1: DC-coupled systems are more efficient because they avoid the multiple DC-to-AC and AC-to-DC conversion losses inherent in AC-coupled systems. Additionally, DC-coupled systems can capture “clipped” energy—excess DC power generated by the solar array during peak sunlight that the inverter would otherwise discard due to capacity limits.

Q2: Why is Lithium Iron Phosphate (LFP) preferred over Nickel Manganese Cobalt (NMC) for solar storage?

A2: LFP is strictly preferred for stationary storage because of its superior thermal stability (reducing fire risk), dramatically longer cycle life (often exceeding 8,000 cycles compared to NMC’s 3,000 to 4,000), and its avoidance of conflict minerals like cobalt, which stabilizes supply chain pricing.

Q3: How does a solar panel energy storage battery help commercial facilities reduce demand charges?

A3: Commercial utilities often bill based on the highest 15-minute power spike a facility draws during a month. The battery’s Energy Management System (EMS) continuously monitors the building’s load. When a spike occurs (e.g., heavy machinery starting up), the battery instantly discharges power to supply that spike, keeping the power drawn from the utility grid below a specific threshold (a process known as peak shaving).

Q4: What causes battery degradation in a solar energy storage system?

A4: Degradation is caused by both cyclic aging (the physical wear from charging and discharging) and calendar aging (degradation over time). The primary accelerators of degradation are high operating temperatures and maintaining the battery at a 100% State of Charge (SoC) for extended periods. Advanced liquid-cooled thermal management and optimized SoC algorithms are engineered to minimize these variables.

Q5: Can these storage systems operate when the main utility grid fails?

A5: Yes, provided the system is equipped with grid-forming inverters and an Automatic Transfer Switch (ATS). When the grid fails, the system instantly disconnects from the grid to protect line workers (anti-islanding) and then establishes its own microgrid, using the solar panels and battery to provide uninterrupted power to the facility’s critical loads.
