CATL Na Ion Technology: Engineering the Future of Grid Storage

The stationary energy storage industry is rapidly approaching the economic and physical limits of Lithium Iron Phosphate (LFP) technology. Extreme supply chain volatility, coupled with severe capacity degradation in sub-zero environments, demands a more resilient electrochemical solution. The commercial deployment of the CATL na ion battery marks a paradigm shift in large-scale energy storage. By utilizing globally abundant sodium elements, this technology drastically reduces the Levelized Cost of Storage (LCOS). However, integrating these advanced cells into grid-tied infrastructure is not a plug-and-play operation. It requires a complete overhaul of Battery Management Systems (BMS), thermal architecture, and power conversion thresholds. This technical guide explores how professional integrators successfully deploy Na-ion technology across all-scenario energy networks.

Electrochemistry Breakdown: The Advantages of the Na Ion Cell

For grid operators and microgrid developers, evaluating the commercial viability of a new battery chemistry requires a strict analysis of its thermal resilience and kinetic capabilities rather than just theoretical energy density.

The foremost engineering advantage of the Na-ion cell is its extreme low-temperature kinetics. Standard LFP batteries experience severe internal resistance spikes and risk destructive lithium plating when charged below freezing. To combat this, integrators must install high-draw HVAC systems inside battery containers, creating a massive parasitic load that drains system efficiency. The hard carbon anode structure of the CATL na ion battery allows sodium ions to intercalate efficiently even in freezing temperatures, retaining over 90% of its nominal discharge capacity at -20°C. For Alpine microgrids or Arctic Utility ESS installations, this eliminates the need for aggressive active heating, dramatically improving the overall round-trip efficiency (RTE) of the storage asset.

Furthermore, Na-ion electrochemistry supports incredibly fast charge kinetics. At room temperature, these cells can reach 80% State of Charge (SOC) in approximately 15 minutes. This rapid response is highly desirable for applications requiring sudden power bursts, such as dynamic grid frequency regulation or buffering ultrafast EV charging infrastructure.

The Integrator’s Bottleneck: BMS Architecture and Voltage Dynamics

The assumption that sodium-based cells can act as a direct drop-in replacement for existing lithium-ion infrastructure is fundamentally incorrect. Transitioning to Na-ion requires a completely redesigned control topology to ensure safe and efficient energy dispatch.

The Sloped Voltage Discharge Curve

LFP cells possess a highly flat voltage discharge plateau, meaning the voltage remains relatively constant for the majority of the discharge cycle. In contrast, Na-ion cells exhibit a sloped, linear voltage discharge curve. A legacy BMS calibrated for LFP will fail entirely if connected to a Na-ion pack, resulting in severe SOC and State of Health (SOH) miscalculations. Integrators like CNTE (Contemporary Nebula Technology Energy Co., Ltd.) must develop entirely new, highly sophisticated BMS algorithms. The linear voltage curve actually allows a specialized BMS to calculate the exact remaining capacity much more accurately than it could with LFP, enabling highly precise energy dispatching for the Energy Management System (EMS).

AB Battery Pack Integration Challenges

To balance energy density with extreme cold-weather performance, CATL introduced the concept of "AB Battery System Integration," which mixes both sodium-ion and lithium-ion cells within the same physical pack. Dispatching energy from two chemically distinct cells connected to the same DC bus requires top-tier, proprietary BMS logic. The algorithms must dynamically balance the load, prioritizing the Na-ion cells during freezing mornings and shifting to the Li-ion cells as temperatures normalize.

Mapping Na-Ion Tech to All-Scenario Applications

The unique physical properties of natrium-based chemistry allow specialized integrators to deploy these assets across diverse, high-demand market verticals.

Utility ESS Deployments

For massive megawatt-hour (MWh) projects, capital expenditure (CAPEX) dictates project feasibility. The raw material cost of sodium is a fraction of the cost of lithium. By integrating Na-ion technology, utility providers can deploy sprawling containerized battery farms at a significantly lower initial investment, preventing grid curtailment and stabilizing regional power distribution where spatial footprint is a secondary concern.

Smart BESS EV Charging Stations

As the demand for ultra-fast DC EV charging surges, local power grids are often unable to supply the required instantaneous load. Integrating a Na-ion ESS alongside the charging station creates a high-power buffer. The battery absorbs energy slowly from the grid during off-peak hours and discharges it massively into the vehicle upon demand. The fast-charging kinetics and cold-weather reliability of Na-ion cells ensure these stations remain fully operational even during harsh winter conditions.

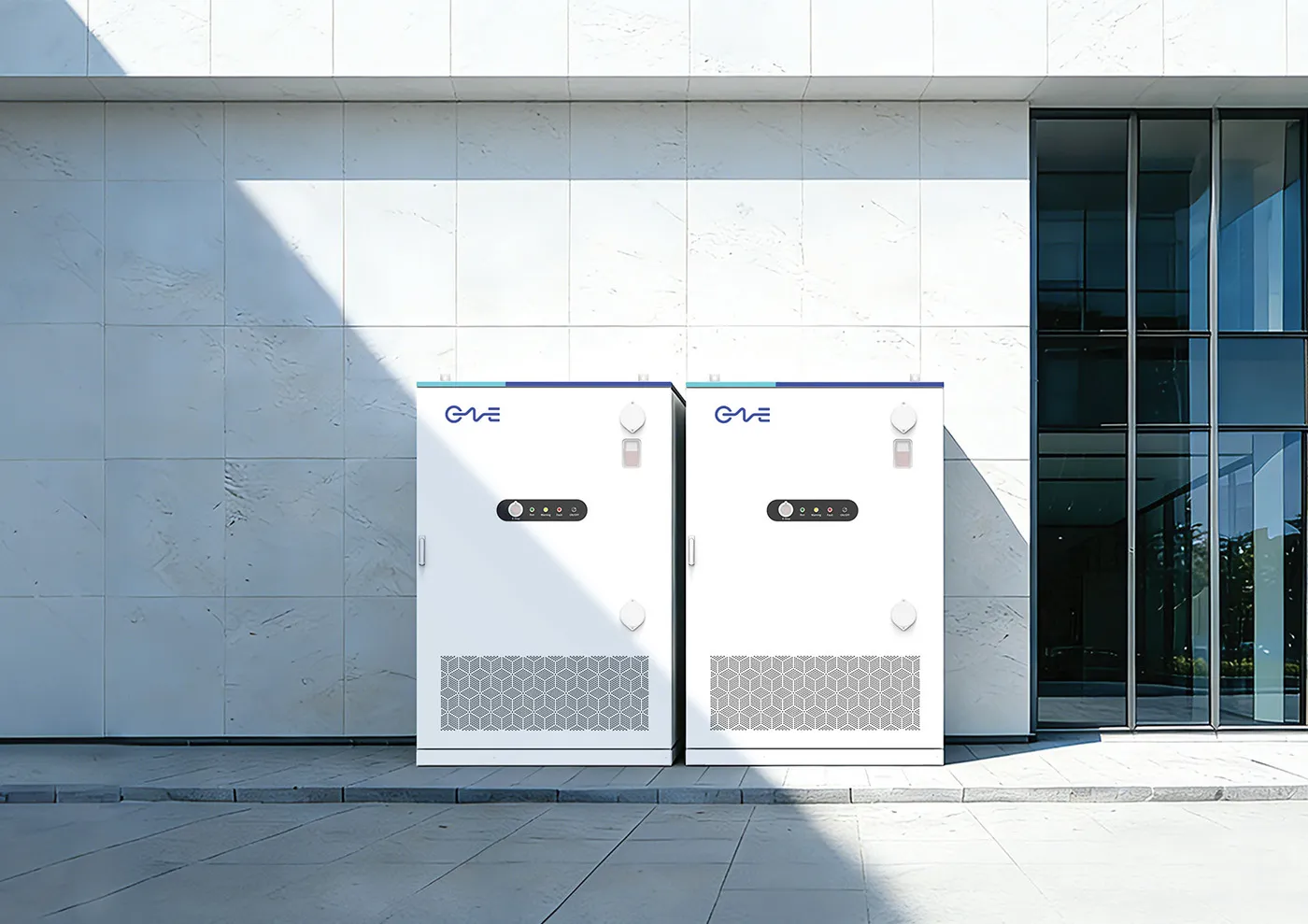

C&I and Residential ESS

Manufacturing facilities and residential homes require immediate backup power and daily peak shaving to avoid exorbitant utility demand charges. Na-ion cells exhibit exceptional thermal stability and are highly resistant to thermal runaway. This non-flammable characteristic makes them incredibly safe for deployment in C&I cabinets located near densely populated factory floors or within residential basements.

Frequently Asked Questions (FAQ)

Q1: Can Na-ion batteries be safely discharged to zero volts?
A1: Yes. A critical advantage of Na-ion chemistry is that the cells do not suffer from copper dissolution at zero volts. Unlike lithium-ion batteries, Na-ion modules can be discharged entirely to 0V for completely safe, short-circuit-proof international transportation and installation without degrading the internal cell structure.

Q2: Does Na-ion technology require specialized Power Conversion Systems (PCS)?
A2: Na-ion cells typically operate across a wider voltage window than standard LFP cells. While existing Power Conversion Systems (PCS) hardware can often be utilized, the system integrator must heavily reprogram the DC-thresholds and control software to ensure maximum energy extraction without clipping the inverter.

Q3: What is the current cycle life expectation for commercial Na-ion packs?
A3: Early commercial generations of Na-ion cells achieve between 3,000 and 4,000 cycles. While currently lower than the 6,000+ cycles achievable with top-tier LFP cells, the significantly lower initial CAPEX and operational savings from reduced thermal management often result in a superior LCOS for specific grid and microgrid applications.

Q4: Is Natrium-ion the exact same technology as Sodium-ion?
A4: Yes. "Natrium" is the Latin/Germanic root word for Sodium (reflected in its chemical symbol, Na). While the term "Sodium-ion" is prevalent in North America, "Natrium-ion" is frequently used by European engineering firms and within advanced materials science research.

Q5: Are Na-ion energy storage systems environmentally friendly?
A5: Yes. Sodium is the sixth most abundant element on Earth and is easily extracted from seawater or mineral deposits. This eliminates the environmentally damaging mining processes, excessive water usage, and geopolitical supply chain bottlenecks associated with lithium, cobalt, and nickel extraction.
