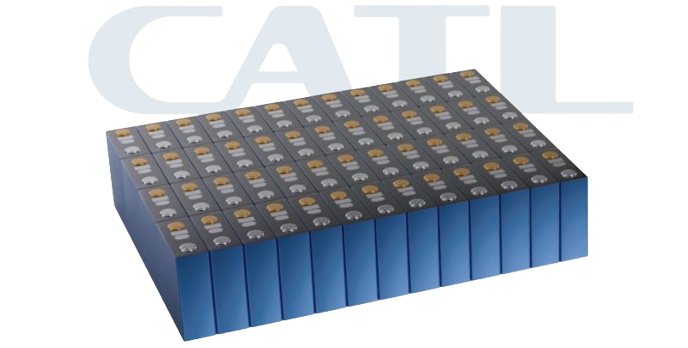

CATL Original PACK
LFP530Ah
Cycle Life≥10,000
Building-Block
Unlock 1MWh+ Power

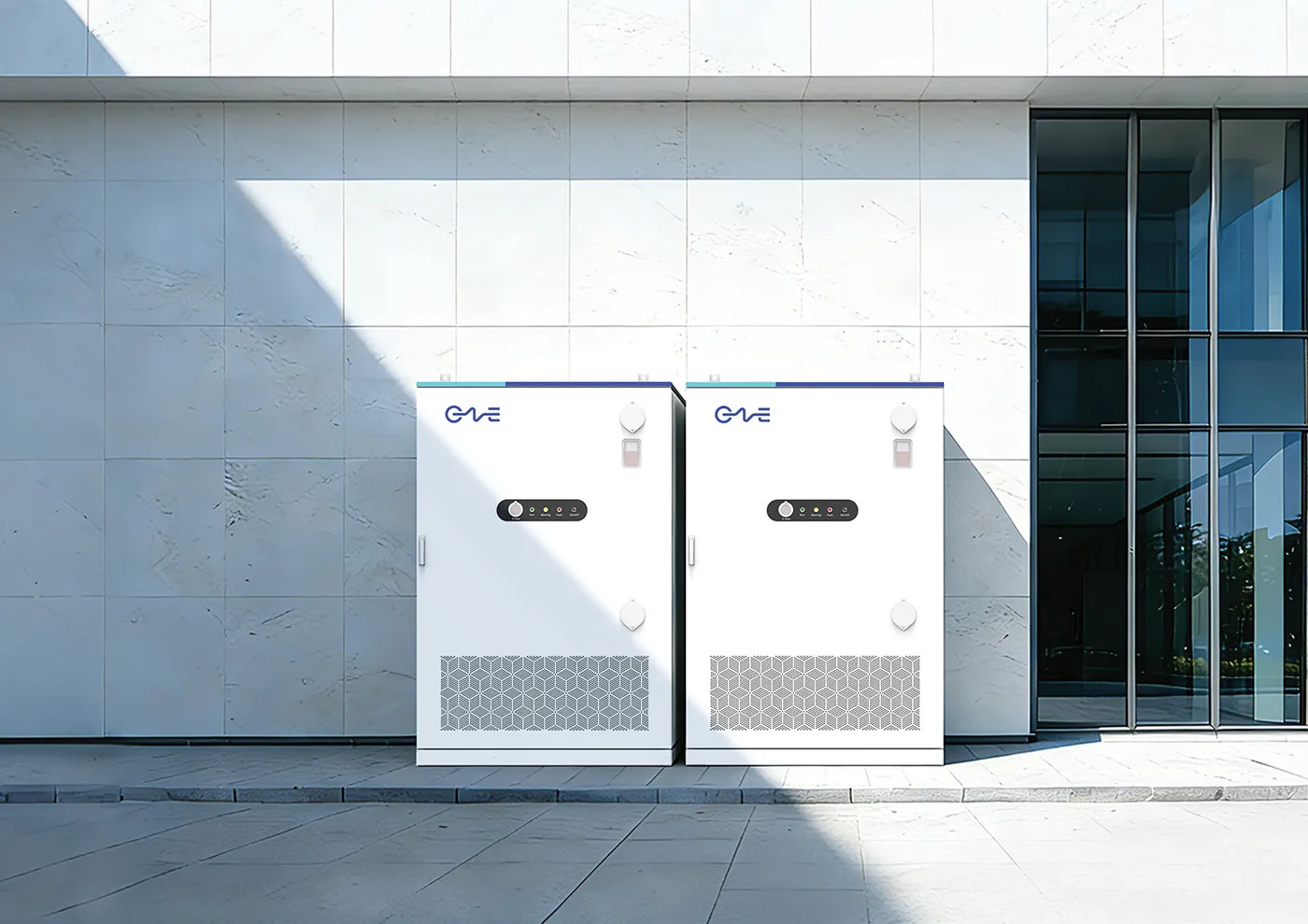

STAR H-MAX220 kW / 440 kWh
Outdoor All-in-One Liquid-Cooled ESS
Transformer-Free
0.5P / 0.25P Dual Configurations
65dB Operation
One-Touch Start/Stop
Certified for Grid Connection in 45 Countries
STAR H-MAX Product Advantages
CATL Original PACK & Global Product Certifications
6 Global Product Certifications
IEC 62619IEC 63056IEC 60730-1
IEC 62477-1IEC 61000-6-2&4UN38.3
STAR H-MAX Product Advantages
One System Dual Configuration
High Power Output
Peak-valley Arbitrage
Energy Priority
4-hour Power Supply
STAR H-MAX Product Advantages
Simplified Operations & Maintenance
External Power Button
for Easy Control

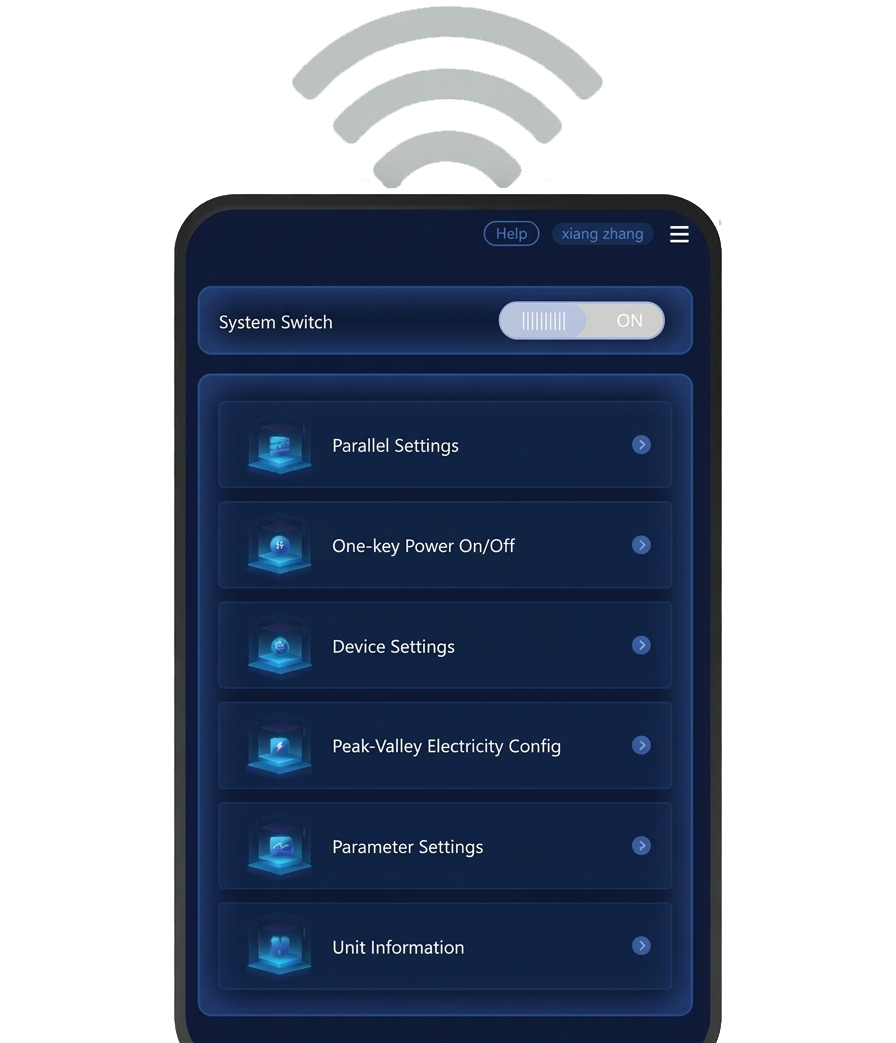

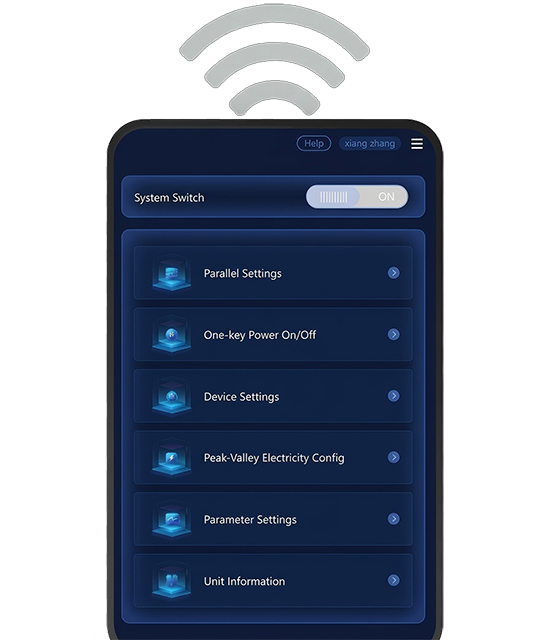

Quick Setup
Mini-app based configuration,
Master-slave setup in 5 min.
STAR H-MAX Product Advantages

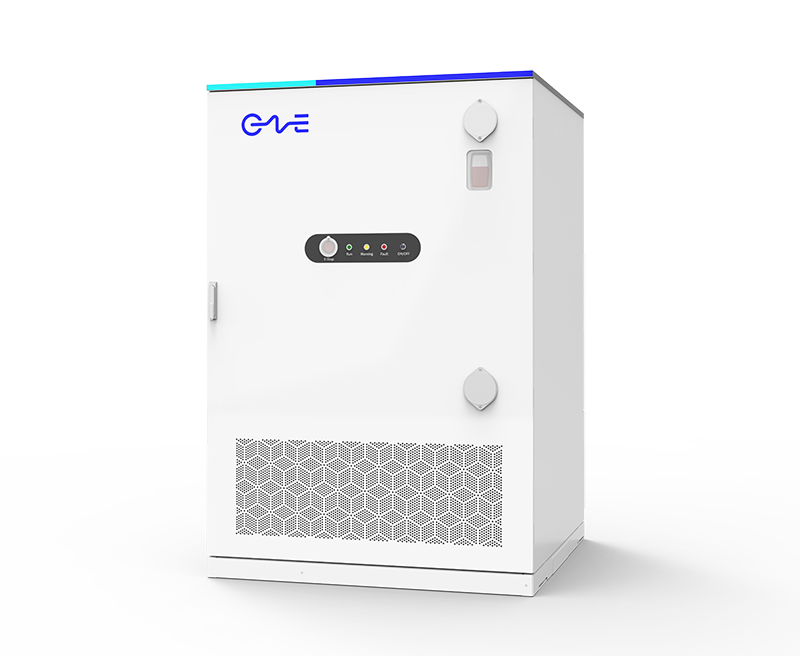

STAR H-MAX Specifications
Outdoor All-in-One Liquid-Cooled ESS
Battery Parameters
Cell TypeLFP
Cell Capacity530 Ah
Nominal Energy440.96 kWh
Cooling MethodLiquid cooling
Max. Charge/Discharge Rate0.5P/0.5P
AC Parameters
Rated Power220 kW
Rated Voltage380 Vac / 400 Vac
Rated Frequency50 Hz
DC Parameters
Rated Voltage832 Vdc
Voltage Range728 Vdc ~ 936 Vdc
System Parameters
Temperature-25℃ ~ 55℃ (>45℃ derating)
Humidity0~95%, Non-condensing
Altitude≤4000m (>2000m derating)
IP LevelIP55
Dimensions (W × D × H)1400*1450*2150mm
Weight~4500kg
CommunicationEthernet
